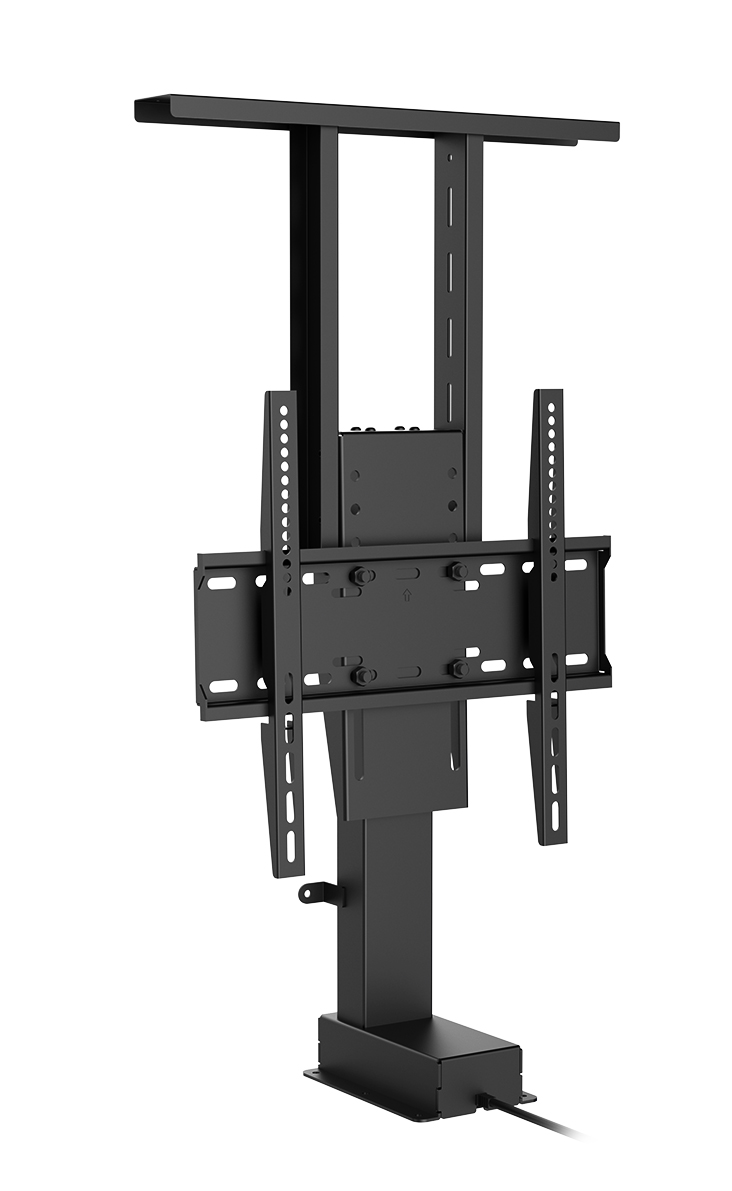

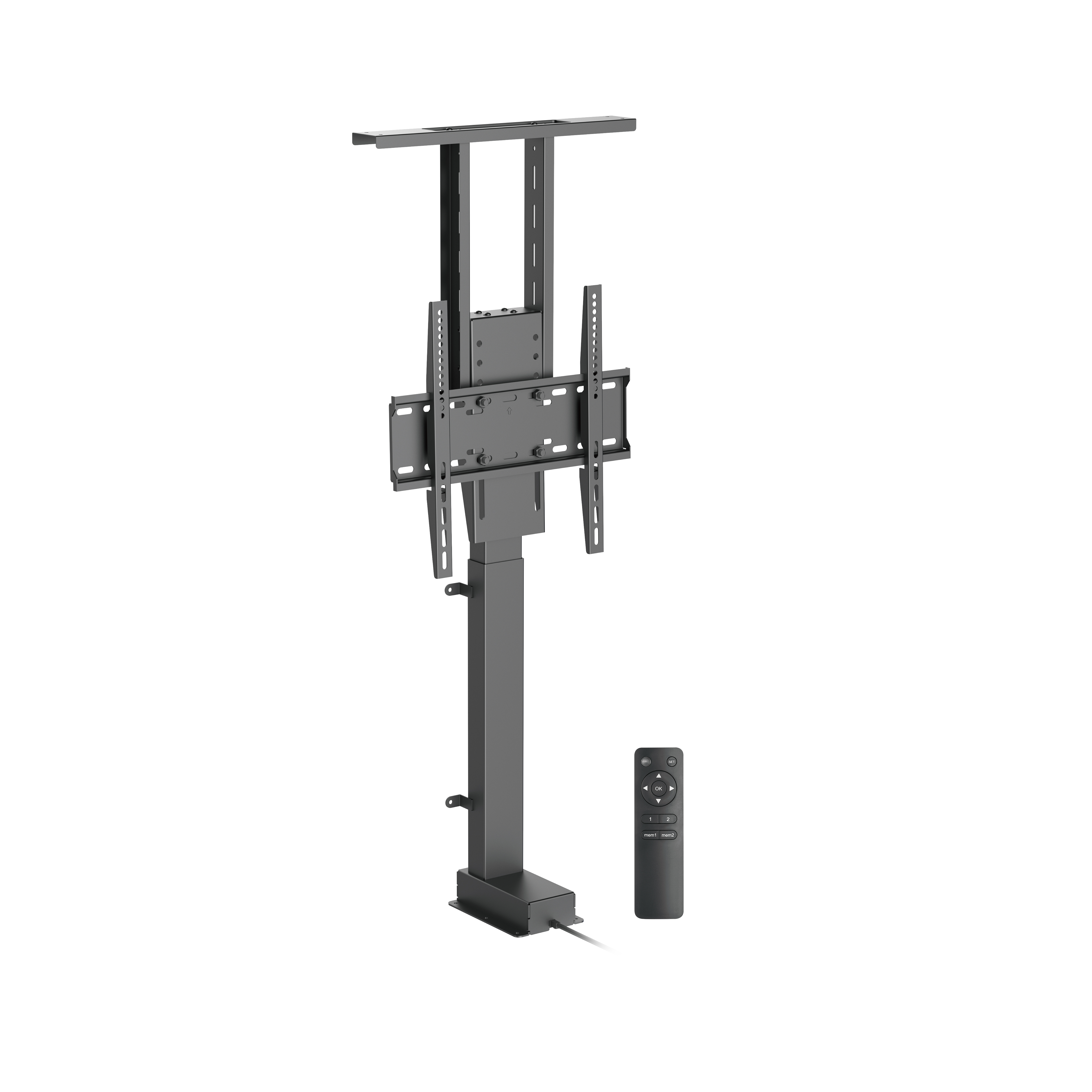

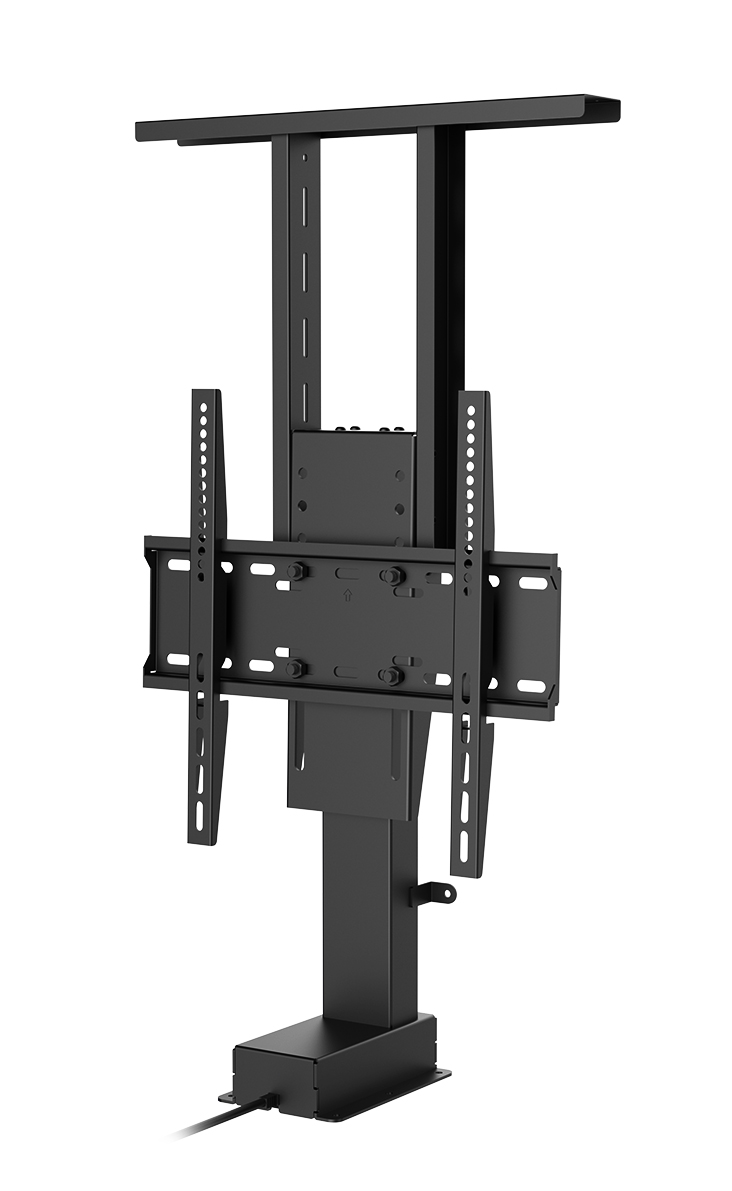

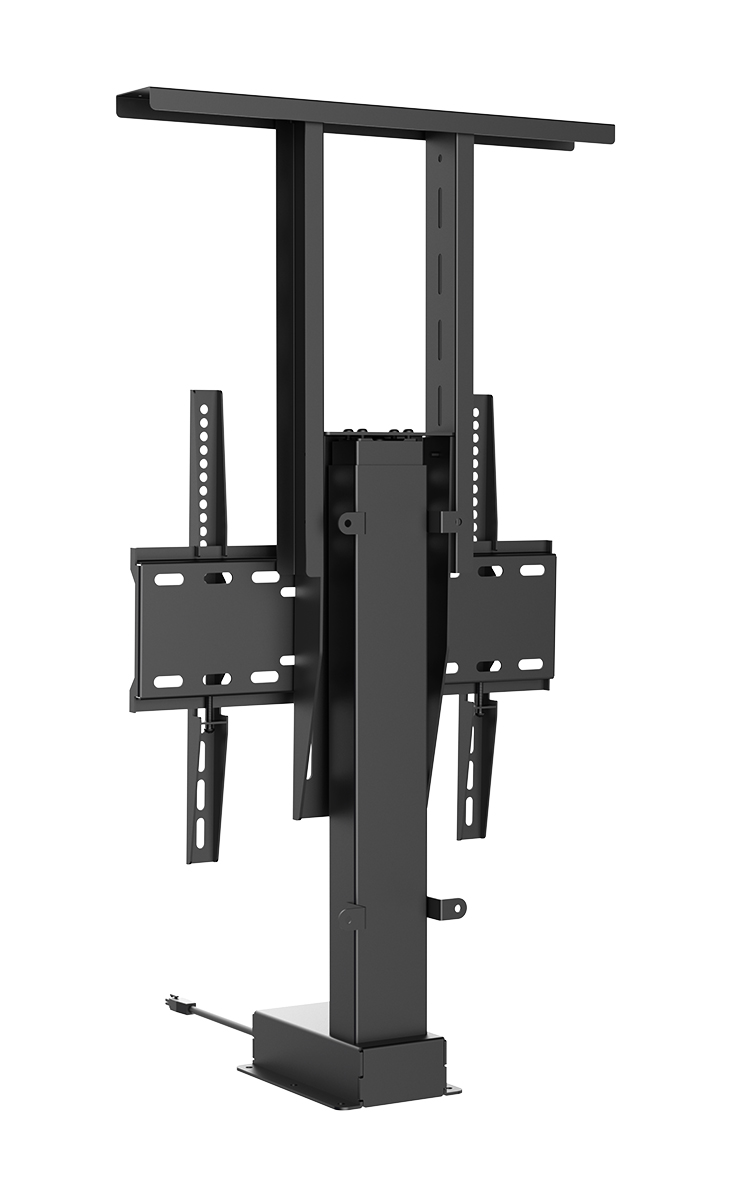

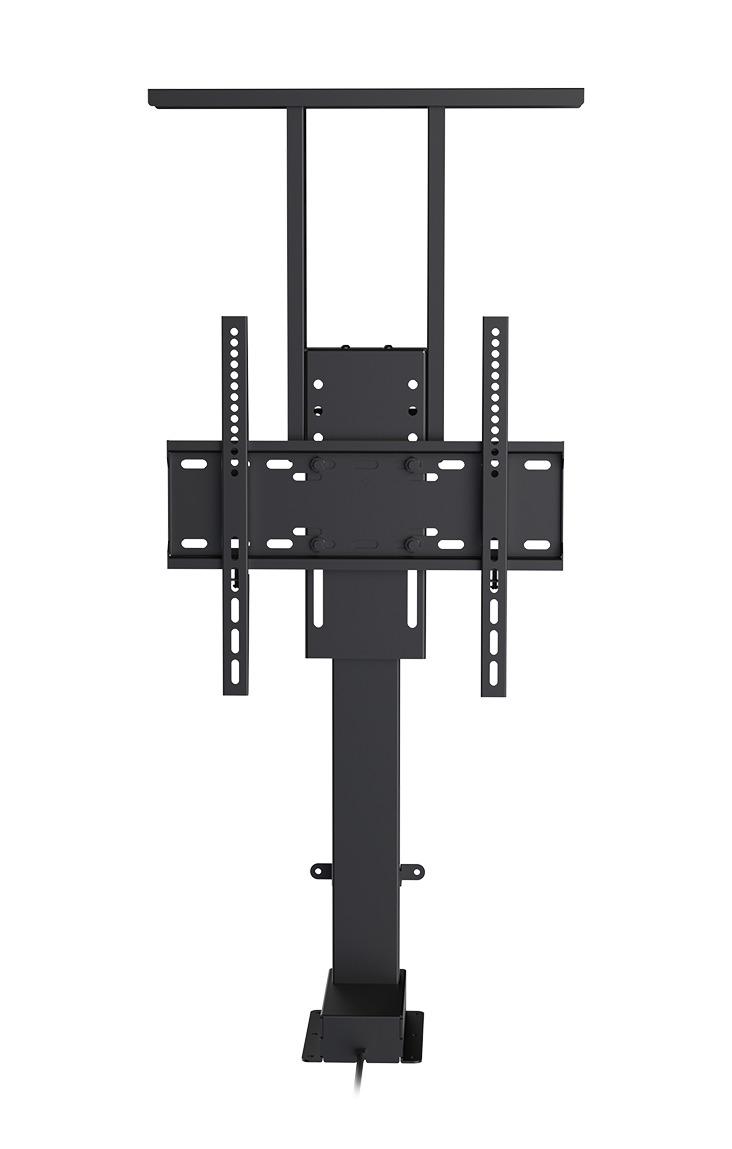

Low Motorize TV lift Suit under window/ Low Cabinet Fit 32″-48″ Model: GKD-5535M

Description

Feature: Low Motorize TV lift Suit under window/ Low Cabinet/ Boat and other low area application.

Model: GKD-5535M

Fit Screen Size: 32″-48″

Dimension: 215x500x600~1560mm (8.5″x19.7″x23.6″~61.4″)

Shaft fully Retracted: 580mm

Shaft Travel/ Stroke: 580-1230mm

Mounting Hole Pattern: VESA & Universal

VESA Compatible: 200×200,400×200,300×300,400×400

Max. Mounting Hole: 400×400

Profile: 115mm (4.5″)

Installation: Inside the Cabinet or Under Window

Panel Type: Detachable Panel

Max Load: 50kg (110lbs)

Strength Tested: 4 Times Approved

Power Supply: Input:AC 100~240V,50/60Hz;Output:DC 29V, 1.8A

Power Cord Length: 1.5m (4.9ft)

Controller Type: Radio Frequency(RF) Remote
