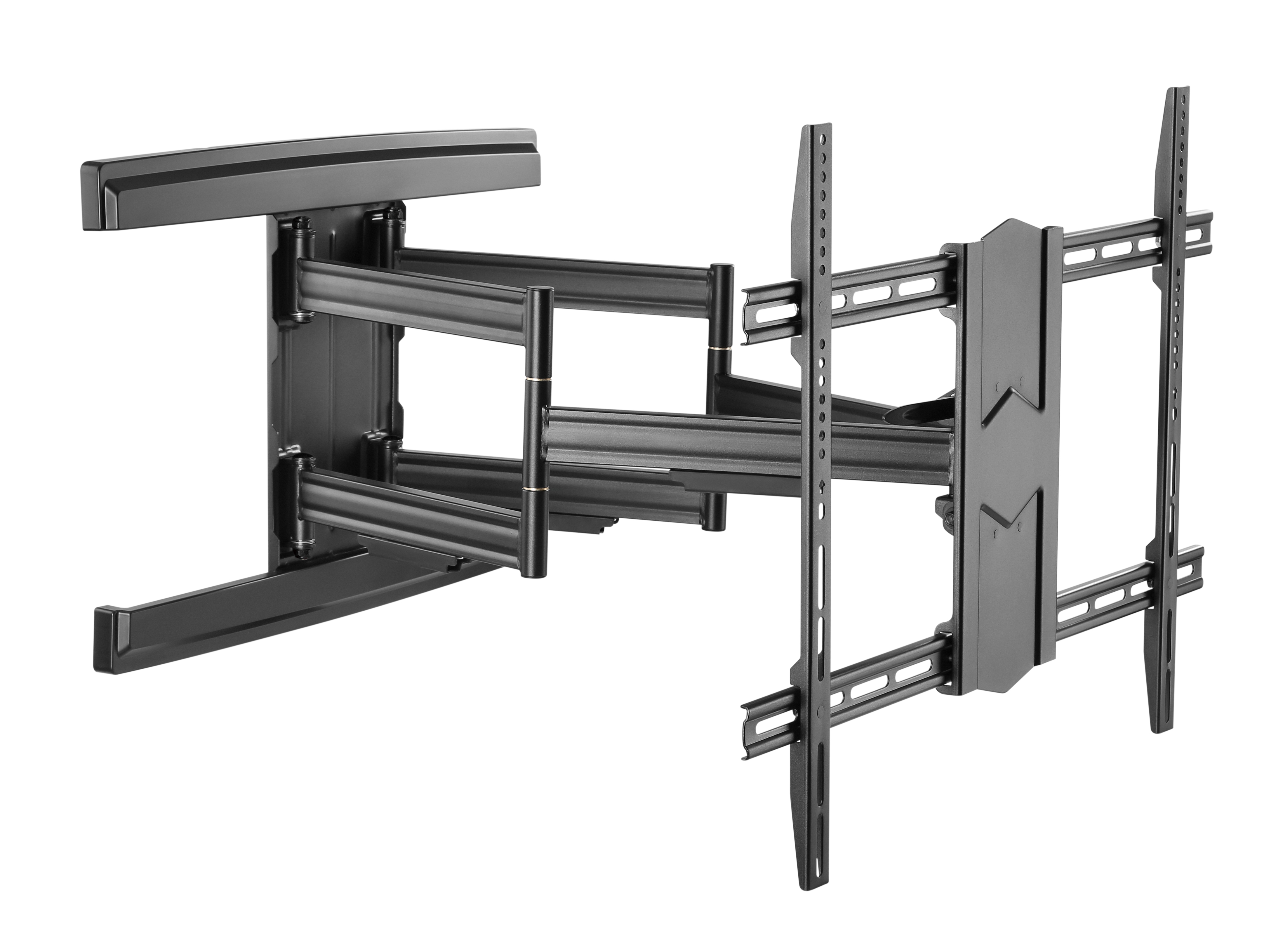

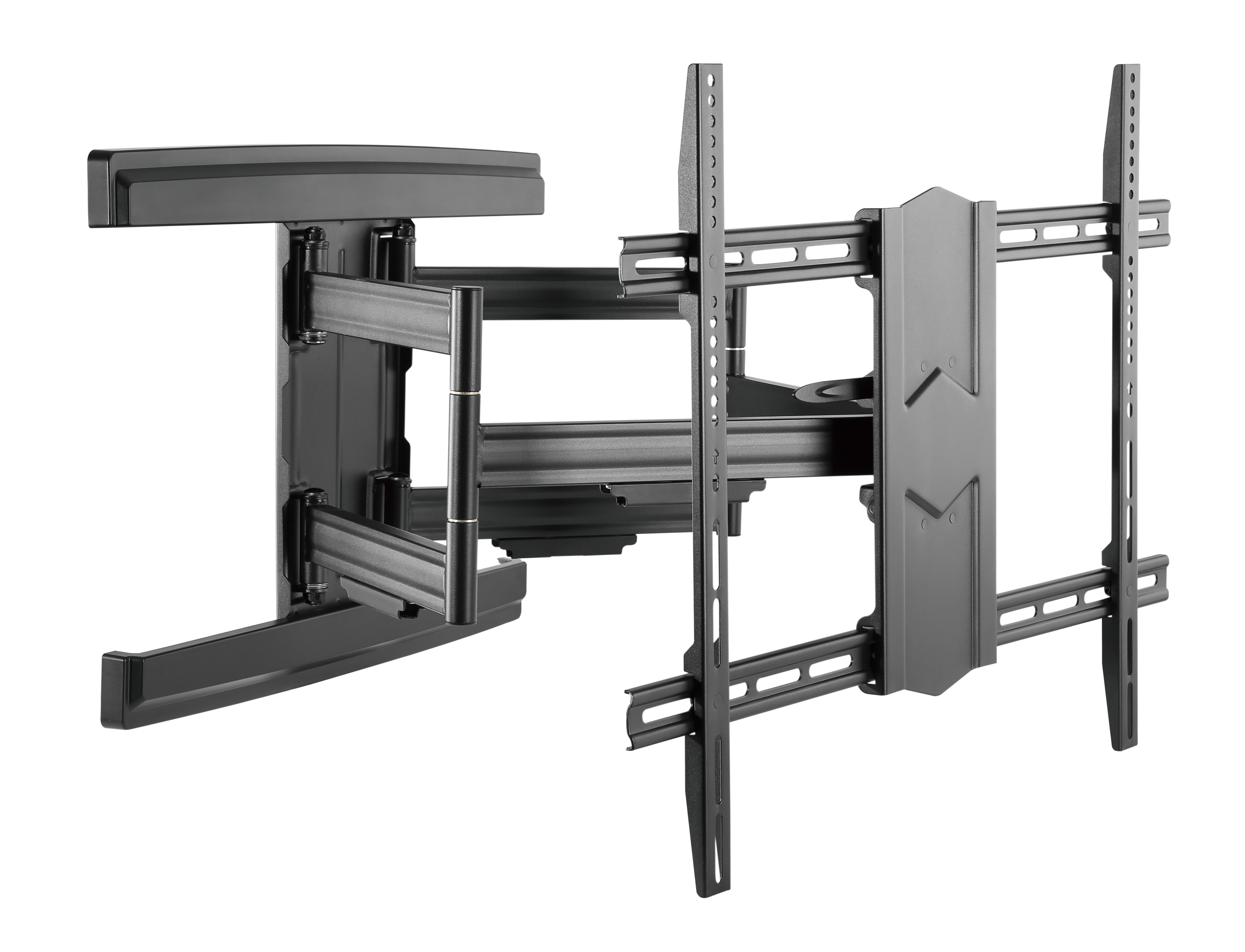

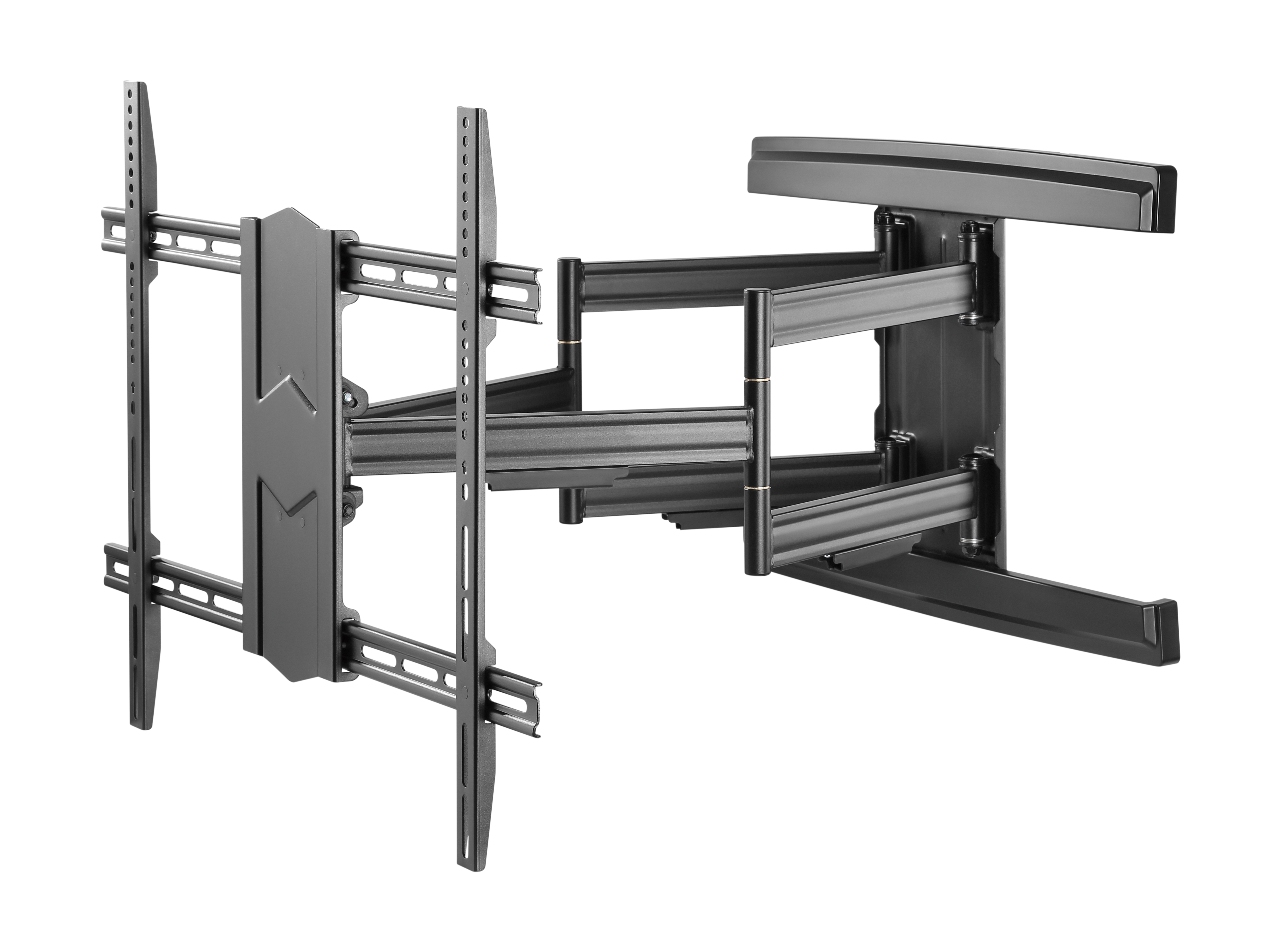

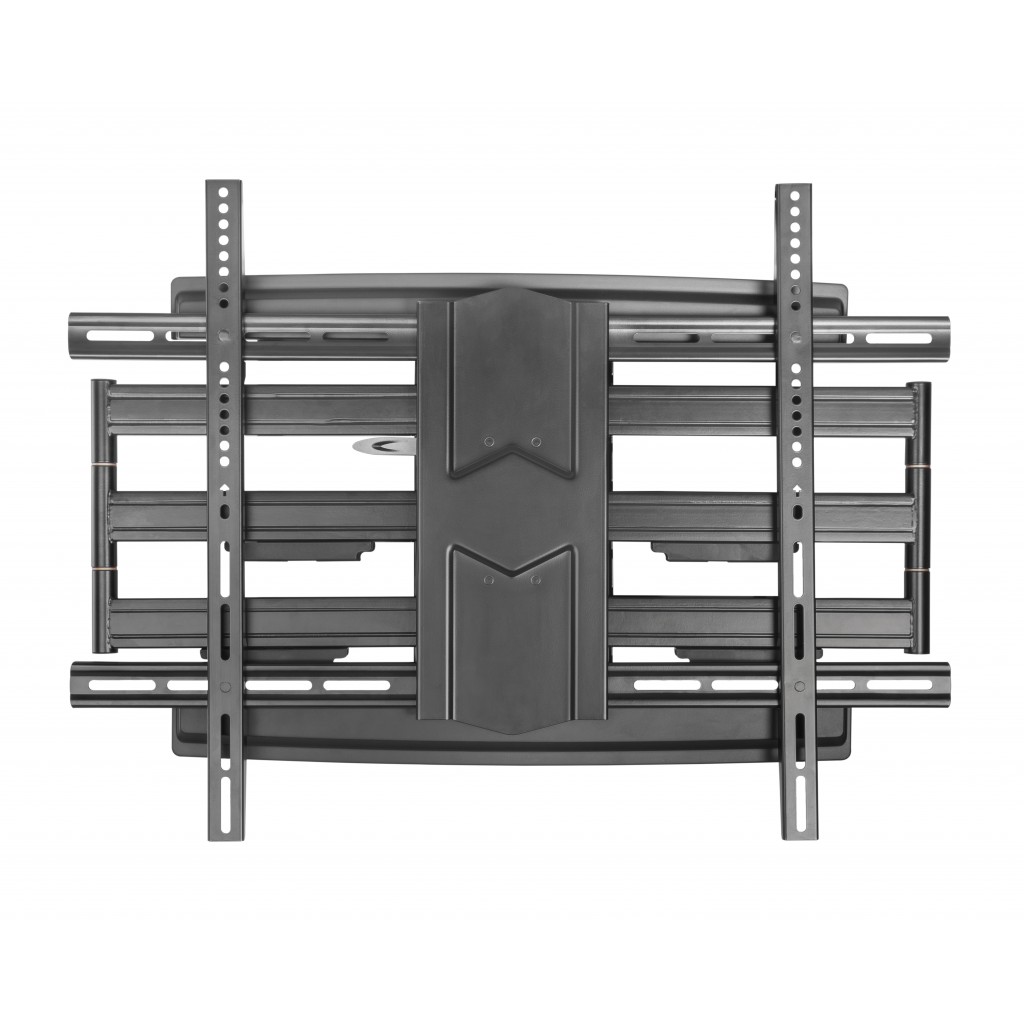

Large Screen Full Motion TV Wall Mount Fit 65″-100″ Model: GKD-P57MKII

Description

Feature: Large Screen Full Motion TV Wall Mount Fit 65″-100″

Model: GKD-P57MKII

Pipe Size: 50x20x1.5mm (2″x0.79″x0.059″)

Surface Finish: Powder Coating

Color: Fine Texture Black,Matte White

Dimensions: 800x850x630mm (31.5″x33.5″x24.8″)

Fit Screen Size: 50″-100″

Mounting Hole Pattern: VESA & Universal

VESA Compatible: 300×200,400×200,300×300,400×300,400×400,600×400,800×400,800×600

Max. Mounting Hole: 800×600

Weight Capacity: 70kg (154lbs)

Strength Tested: 3 Times Approved

Profile: 70-800mm (2.8″~31.5″)

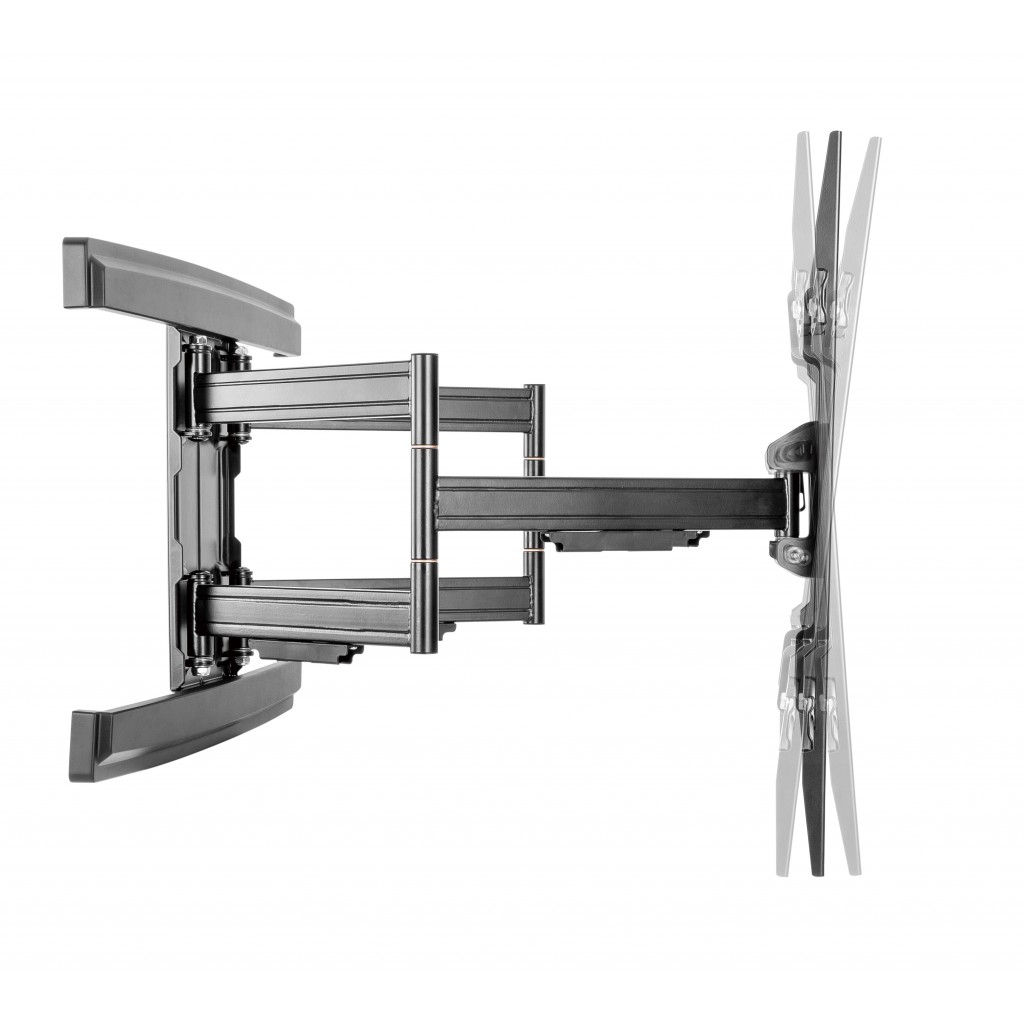

Tilt Range: ＋2°～-15°

Swivel Range: +90°~-90°

Screen Level: +3°~-3°

Installation: Solid Wall,Double Stud(406mm/450mm/600mm)

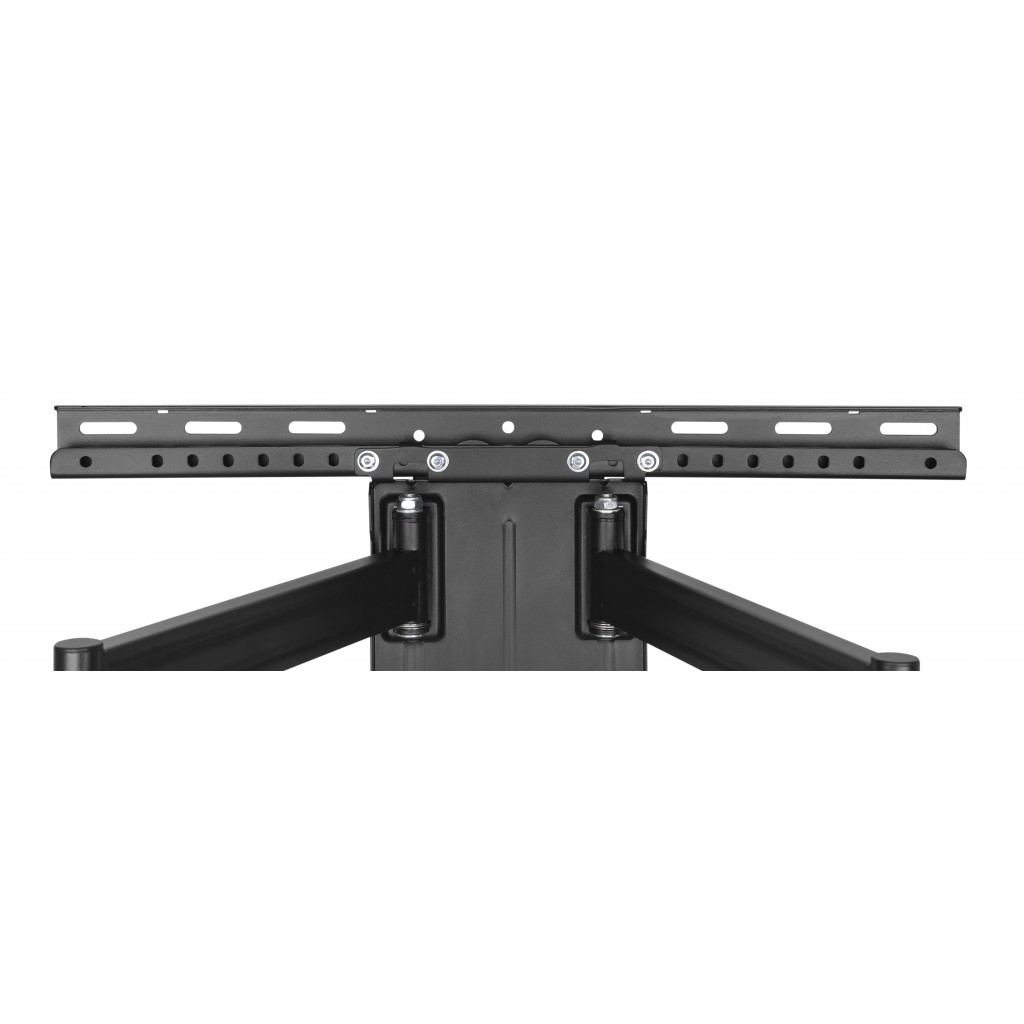

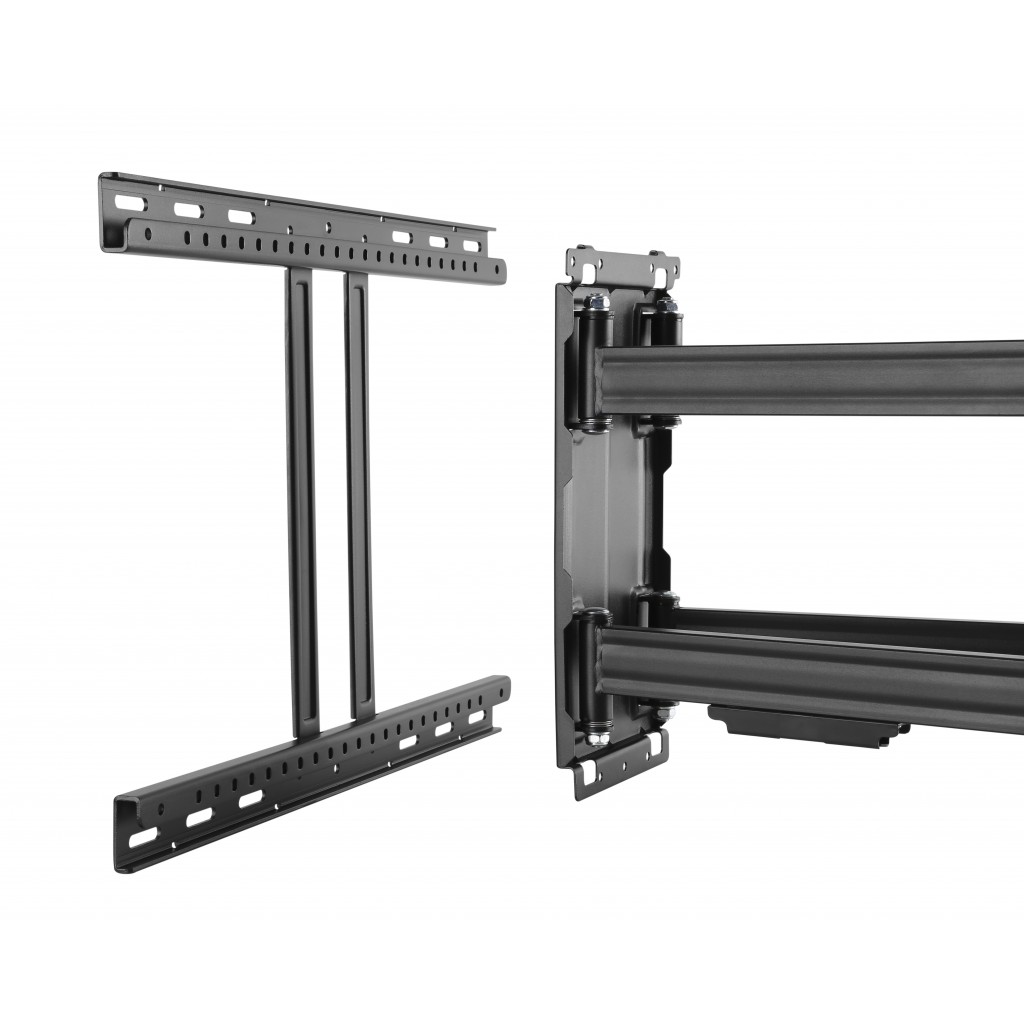

Wall Plate Type: Lateral Shift Wall Plate

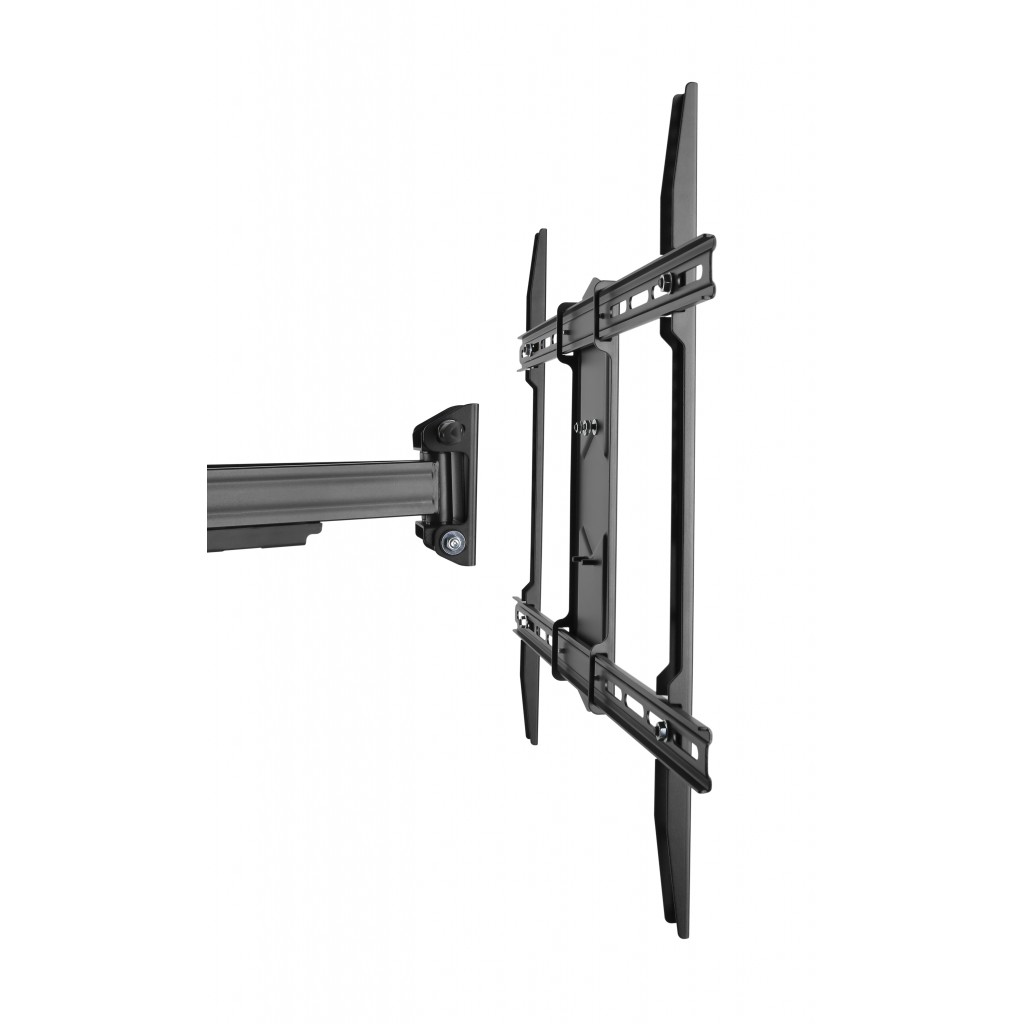

Panel Type: Detachable Panel
